H-IRB-300+

The H-300+ is designed to handle medium-sized rotors, offering precision balancing for a variety of industrial applications. With a maximum rotor weight of 300 kg and a maximum rotor diameter of 800 mm, this machine is ideal for balancing larger components that require high accuracy. The system is powered by a 5.5 kW motor, ensuring efficient operations even for heavy loads.

Key features of this model include the ability to balance rotors with a minimum weight of 10 kg, providing versatility across different rotor sizes. The bed length of 3000 mm offers sufficient space for large rotors, and the belt-driven unit ensures smooth and reliable performance.

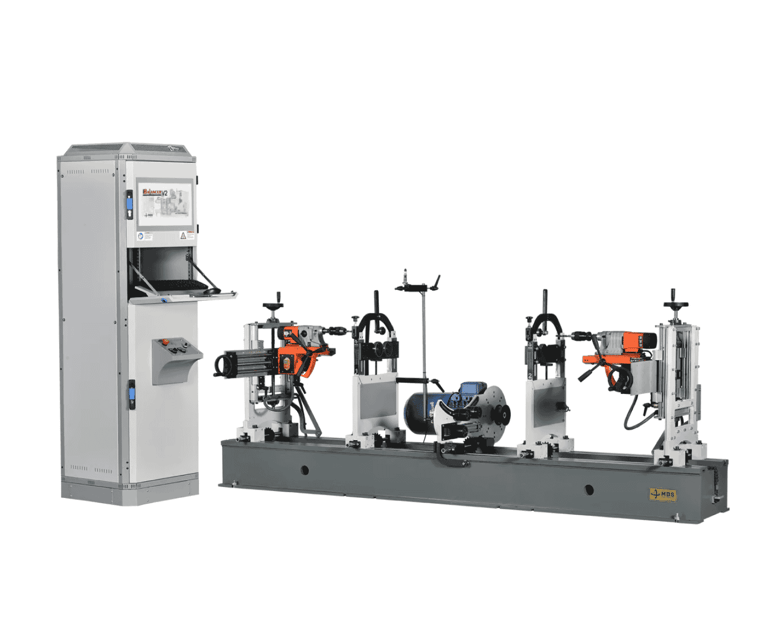

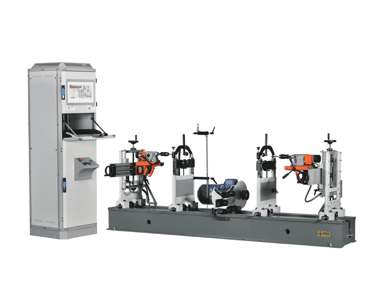

Optional Balancing Machine

Technical Specifications

Max.Rotor Weight

Min.Rotor Weight

Max.Rotor Diameter

Min.Shaft Diameter

Max.Shaft Diameter

Motor power

Drive Unit

Bed Length

300 kg

10 kg

800 mm

9 mm

130 mm

5.5 kW

3000 mm

Belt (Std.)
