H-IRB-100

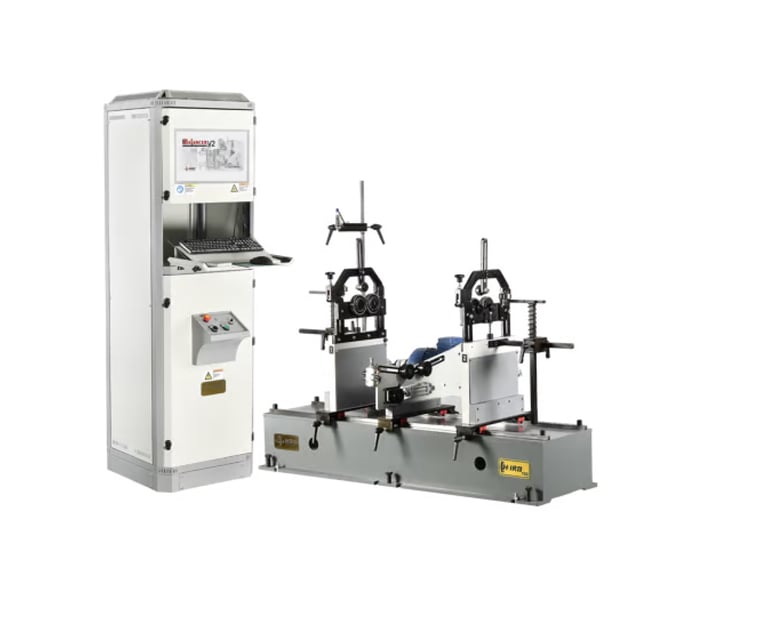

H-IRB-100 Horizontal Balancing Machine is designed for the static and dynamic balancing of large workpieces like rotors, turbines, and fans. This machine supports rotors up to 100 kg with a maximum rotor diameter of 1100 mm, making it ideal for heavy-duty industrial applications.

The Shaft Drive Unit allows precise measurements, and its 4 kW motor power ensures efficient performance for large-diameter rotors. The machine also offers easy operation via a licensed Windows-based balancing program, eliminating the need for recalibration between rotor types. It complies with ISO 1940 standards, ensuring high accuracy in balancing results.

Installation, training, and calibration are provided by our expert team, and all machines come with CE certification. A drill unit can be added based on workpiece requirements, providing even more flexibility.

Horizontal Balancing Machine

Technical Specifications

Max.Rotor Weight

Min.Rotor Weight

Max.Rotor Diameter

Min.Shaft Diameter

Max.Shaft Diameter

Motor power

Drive Unit

Bed Length

100 kg

10 kg

1100 mm

9 mm

130 mm

4 kW

1500 mm

Belt (Std.)
