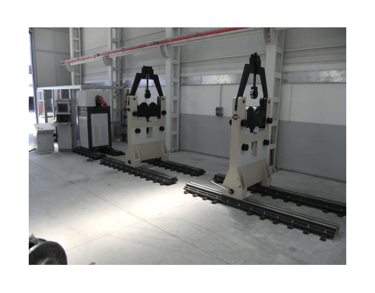

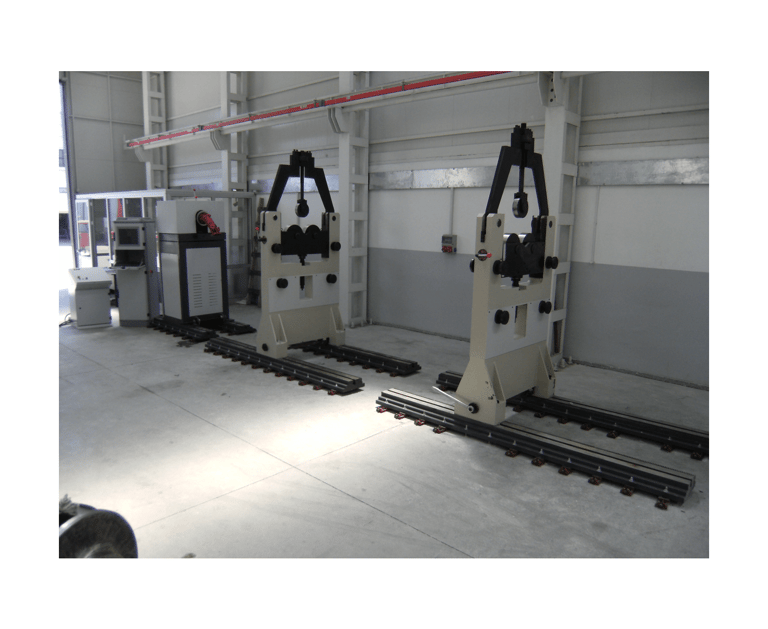

H-IHB-50

The H-IHB-50 Heavy Horizontal Balancing Machine is designed for balancing rotors up to 50,000 kg and with a diameter up to 3900 mm. It includes a powerful 45 kW motor and features an extended bed length of 3000 mm + 3000 mm. This machine can be equipped with a Shaft Drive or Belt Drive, providing flexibility for various industrial applications.

Horizontal Balancing Machine

Technical Specifications

Max.Rotor Weight

Min.Rotor Weight

Max.Rotor Diameter

Min.Shaft Diameter

Max.Shaft Diameter

Motor power

Drive Unit

Bed Length

50000 kg

150 kg

3900 mm

70 mm

480 mm

45 kW

3000 mm + 3000 mm

Shaft (opt) or Belt (Std.)
