H-IHB-3

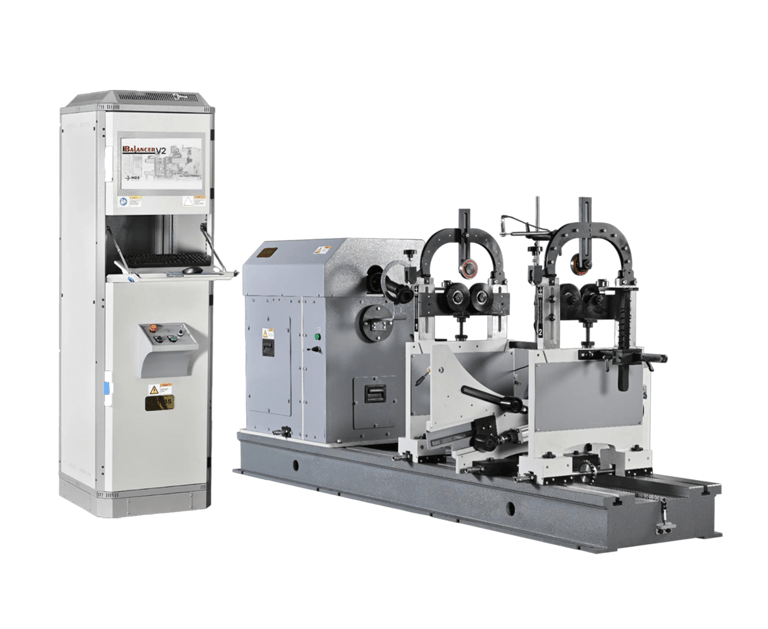

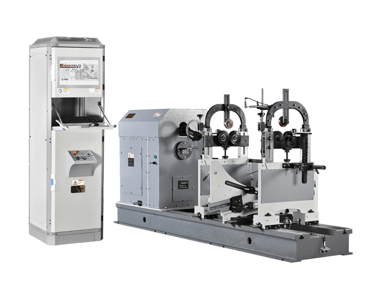

H-IHB-3 Horizontal Balancing Machine is built for large-scale static and dynamic balancing tasks, capable of handling rotors up to 3000 kg with a maximum diameter of 1400 mm. Its robust design is perfect for industries that require precision balancing of large and heavy workpieces.

This machine is equipped with an optional Shaft Drive Unit or standard Belt Drive Unit, and it is powered by a 15 kW motor. The large 3000 mm bed length provides ample space for balancing a wide range of components. The balancing software operates on a licensed Windows system, offering easy-to-use controls and eliminating the need for frequent re-calibration.

Our team provides comprehensive training and installation services, ensuring each machine is ready for use with CE certification. Optional drilling units can be added based on workpiece requirements for even more customization.

Horizontal Balancing Machine

Technical Specifications

Max.Rotor Weight

Min.Rotor Weight

Max.Rotor Diameter

Min.Shaft Diameter

Max.Shaft Diameter

Motor power

Drive Unit

Bed Length

3000 kg

30 kg

1400 mm

10 mm

240 mm

15 kW

3000 mm

Shaft (opt) or Belt (Std.)
