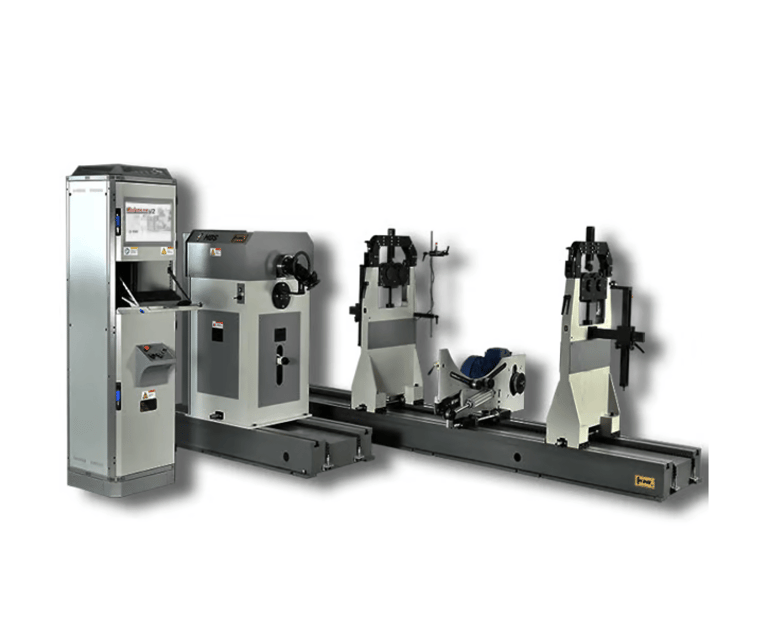

H-IHB-10

The H-IHB-10 Heavy Horizontal Balancing Machine is designed for balancing large rotors up to 10,000 kg. It supports rotor diameters up to 2000 mm and can be equipped with either Shaft Drive or Belt Drive. Powered by a 22 kW motor, the machine ensures efficient balancing with a 4000 mm bed length.

Training, installation, and calibration services are provided, and the machine comes with CE certification. Optional drill units and other customizations are available based on workpiece requirements.

Horizontal Balancing Machine

Technical Specifications

Max.Rotor Weight

Min.Rotor Weight

Max.Rotor Diameter

Min.Shaft Diameter

Max.Shaft Diameter

Motor power

Drive Unit

Bed Length

10000 kg

150 kg

2000 mm

40 mm

320 mm

22 kW

4000 mm

Shaft (opt) or Belt (Std.)
