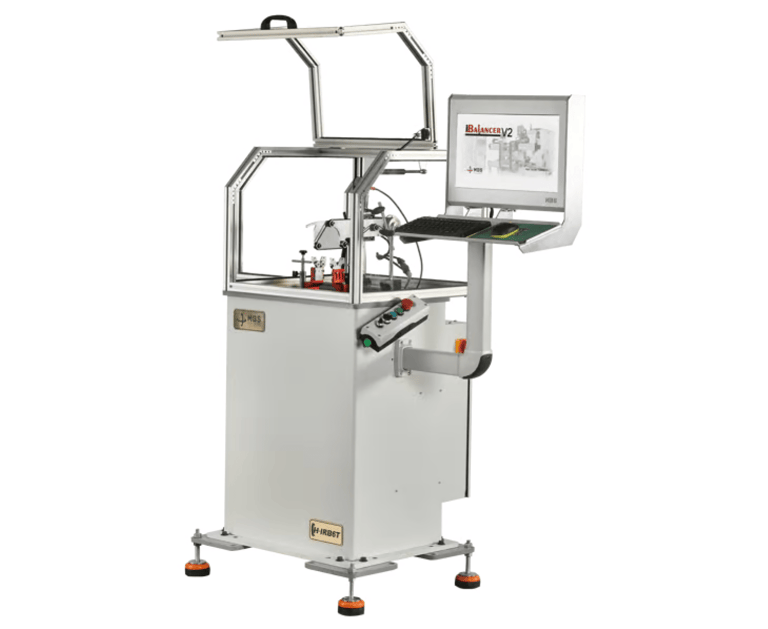

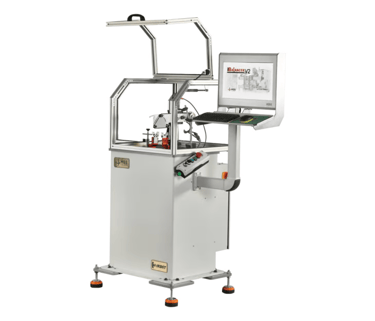

H-IRB 6T

The H-IRB 6T is designed for precise balancing of small rotors, with a maximum rotor weight of 6 kg and rotor diameters up to 260 mm. Equipped with a belt-driven system, 0.4 kW motor power, and a compact 400 mm bed length, it is ideal for balancing lightweight components with shaft diameters ranging from 5 to 30 mm.

Shaft Balancing Machine

Technical Specifications

Max.Rotor Weight

Min.Rotor Weight

Max.Rotor Diameter

Min.Shaft Diameter

Max.Shaft Diameter

Motor power

Drive Unit

Bed Length

6 kg

0.1 kg

260 mm

5 mm

30 mm

0.4 kW

400 mm

Belt (Std.)
