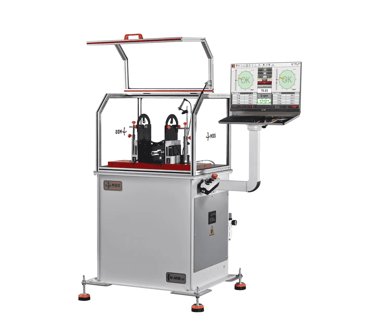

H-IRB 20

The H-IRB 20 is designed for balancing small to medium-sized rotors with a maximum rotor weight of 20 kg. It accommodates a rotor diameter of up to 450 mm, making it suitable for applications requiring precision and efficiency. The machine's compact design includes a bed length of 600 mm, and it operates using a 750 W motor, providing the necessary power for consistent and accurate balancing tasks. With a minimum rotor weight capacity of 500 g, it offers flexibility for handling lighter components. The belt-driven system ensures smooth operation and reliability.

Shaft Balancing Machine

Technical Specifications

Max.Rotor Weight

Min.Rotor Weight

Max.Rotor Diameter

Min.Shaft Diameter

Max.Shaft Diameter

Motor power

Drive Unit

Bed Length

20 kg

500 g

450 mm

5 mm

50 mm

750 W

600 mm

Belt (Std.)
