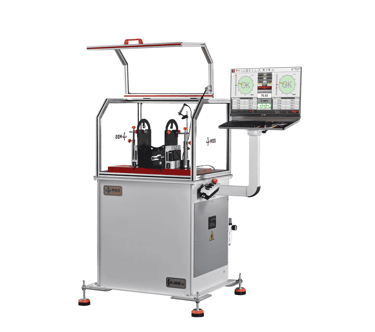

H-IRB 10

H-IRB 10 is designed for precise balancing of small and lightweight rotors, ideal for applications that require high accuracy. With a maximum rotor weight of 10 kg and a maximum rotor diameter of 400 mm, this machine ensures accurate static and dynamic balancing. The system is powered by a 370 W AC motor or a 400 W Servo, providing the necessary torque for efficient operations. The belt-driven unit is compact, with a bed length of 530 mm, making it suitable for workshops with space constraints.

Key features include the ability to balance rotors with a minimum weight of 100 g, providing versatility for smaller components.

Shaft Balancing Machine

Technical Specifications

Max.Rotor Weight

Min.Rotor Weight

Max.Rotor Diameter

Min.Shaft Diameter

Max.Shaft Diameter

Motor power

Drive Unit

Bed Length

10 kg

100 kg

400 mm

4 mm

25 mm

370 W AC / 400 W Servo

400 mm

Belt (Std.)
