CNC-100

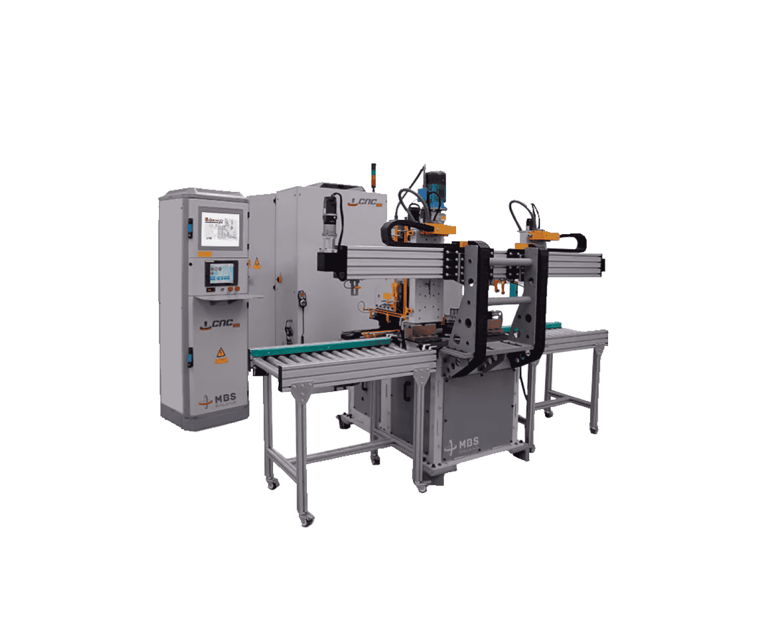

The CNC 100 is designed for efficient and automated handling of workpieces. As the workpiece enters through the conveyor, the automatic workpiece transfer unit picks it up and transfers it to the unbalance measurement unit. This process ensures seamless and precise balancing with minimal human intervention.

The machine can handle a minimum rotor weight of 1 kg and a maximum rotor weight of 30 kg, making it suitable for medium-sized components. Powered by a 4 kW motor, the system can balance rotors with a maximum diameter of 400 mm. The minimum achievable unbalance value is 0.5 gmm, ensuring high precision in measurement.

automatic balancing machine cnc-100
automatic balancing machine cnc-100

Automatic Balancing Machine

Technical Specifications

Max.Rotor Weight

Min.Rotor Weight

Max.Rotor Diameter

Motor Power

Min.Achievable Unbalance Value

30 kg

1 kg

400 mm

4 kW

0.5 gmm
